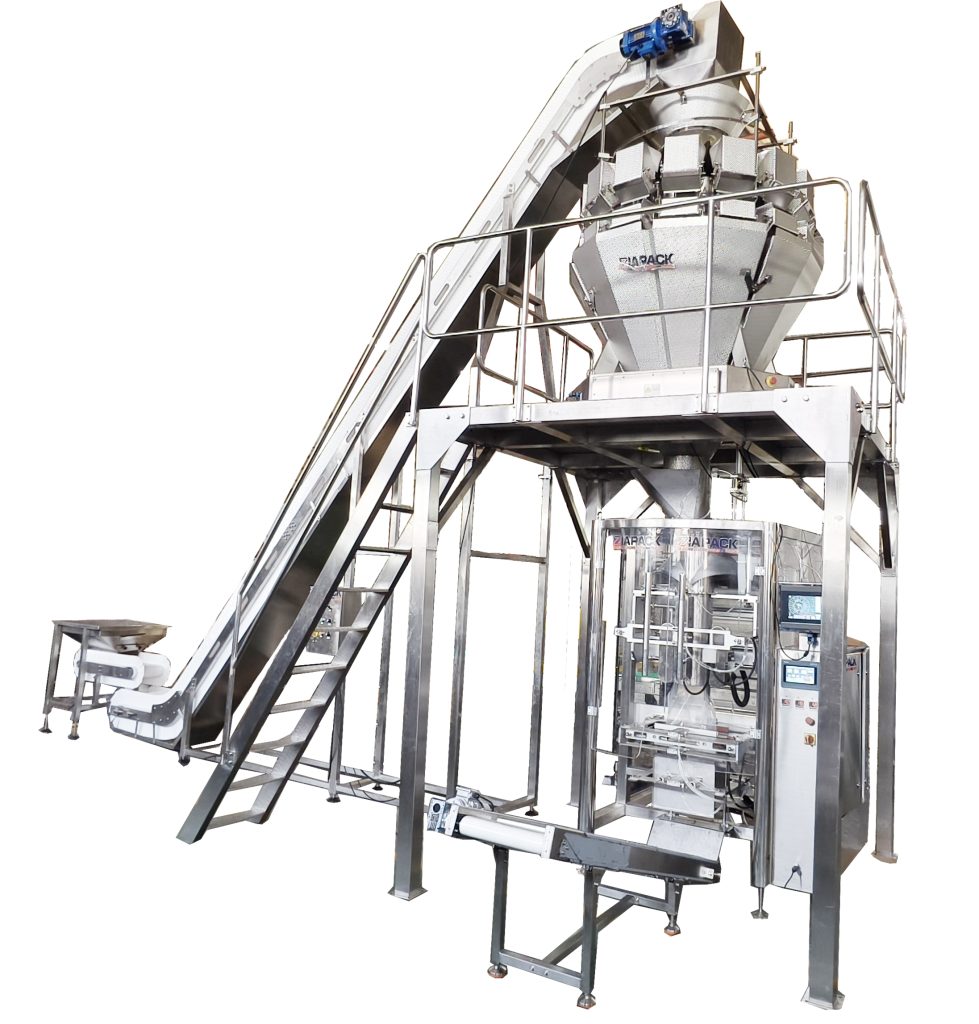

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
Заявка:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
Особенности:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
Вступление :
Эта машина может автоматически выполнять функции изготовления пакетов, наполнения, запечатывания, печати, резки и т. д. Эта машина может автоматически достигать наполнения и запечатывания формирования пакетов.
Эта упаковочная машина использует импортный серводвигатель для подачи пленки, а человеко-машинный интерфейс использует усовершенствованный сенсорный экран. Эксплуатация проще и удобнее. Все компоненты изготовлены под всемирно известным брендом, ПЛК - SIEMENS, серводвигатель - PANASONIC, сенсорный экран - SIEMENS, цилиндр и воздушный клапан - SMC. части, контактирующие с материалом, шкаф управления, основная рама изготовлены из нержавеющей стали304
Технические параметры:
| модель | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| Длина мешка | 150-480mm by secondary film pulling the bag length can be longer |
| Ширина мешка | 120-375mm(Side width +front width ) |
| Ширина пленки | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| Мощность | 6KW 380V±10% 50Hz |
| Размер машины | 1650*1500*1750mm |
| Вес машины | 650kg |
